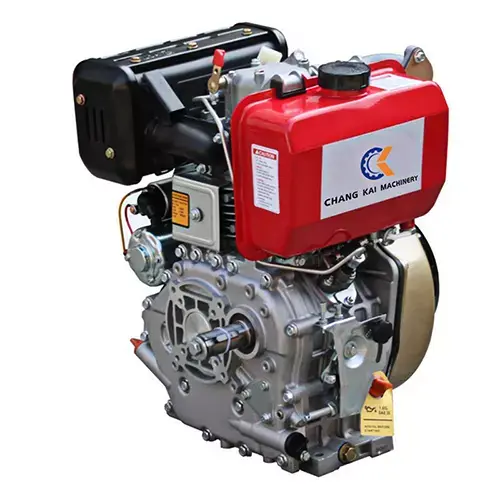

Engine CKD186FAS

Prodct Name Air-cooled diesel engine
Product Model CKD186FAS
Type Single cylinder,Upright, 4-stroke, Air-cooled
BoreX stroke(mm) 86X72
Displacement(cc) 418
Combustion systems Direct injection
Compression ratio 20:1
Rated speed(rpm) 1800
Rated power(kW) 5.9/6.6
Max.power(kW) 6.5/7.1
Rated Horse Power(hp) 8/9
Fual tank capacity(L) 5.5
Fual consumption(L/hr.) ≤2.0
Lubricant capacity(L) 1.65
Starting Fashion Recoil starter/Elec.starter
Output Shaft Crankshaft/Camshaft
Fuel consumption rate kWh 275/280
Fuel trademark 0#（summer），-10#（winter）diesel
Lubricant trademark CD grade or SAE10W-30 15W-40
Net Weight(kg) Recoil starter 48/Elec.starter 53
Overall dimenion L x W x H(mm) 510X490X570
