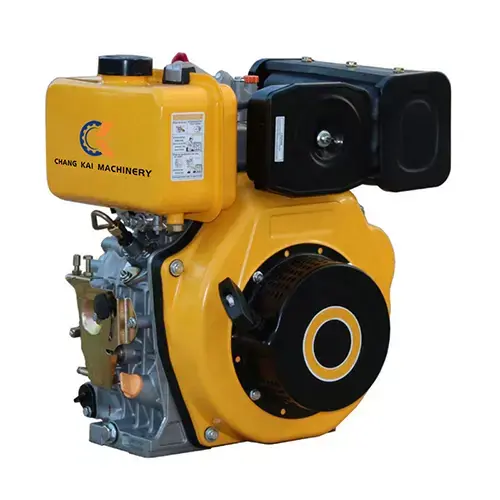

Engine CKD178F/FE

Prodct Name Air-cooled diesel engine
Product Model CKD178F/FE
Type Single cylinder,Upright, 4-stroke, Air-cooled
BoreX stroke(mm) 78X62
Displacement(cc) 296
Combustion systems Direct injection
Compression ratio 20:1
Rated speed(rpm) 3000/3600
Rated power(kW) 3.7/4.0
Max.power(kW) 4.0/4.4
Rated Horse Power(hp) 5/5.5
Fual tank capacity(L) 3.5
Fual consumption(L/hr.) ≤1.41
Lubricant capacity(L) 1.1
Starting Fashion Recoil starter/Elec.starter
Output Shaft Crankshaft/Camshaft
Fuel consumption rate kWh 275/280
Fuel trademark 0#（summer），-10#（winter）diesel
Lubricant trademark CD grade or SAE10W-30 15W-40
Net Weight(kg) Recoil starter 33/Elec.starter 38
Overall dimenion L x W x H(mm) 480X480X520
